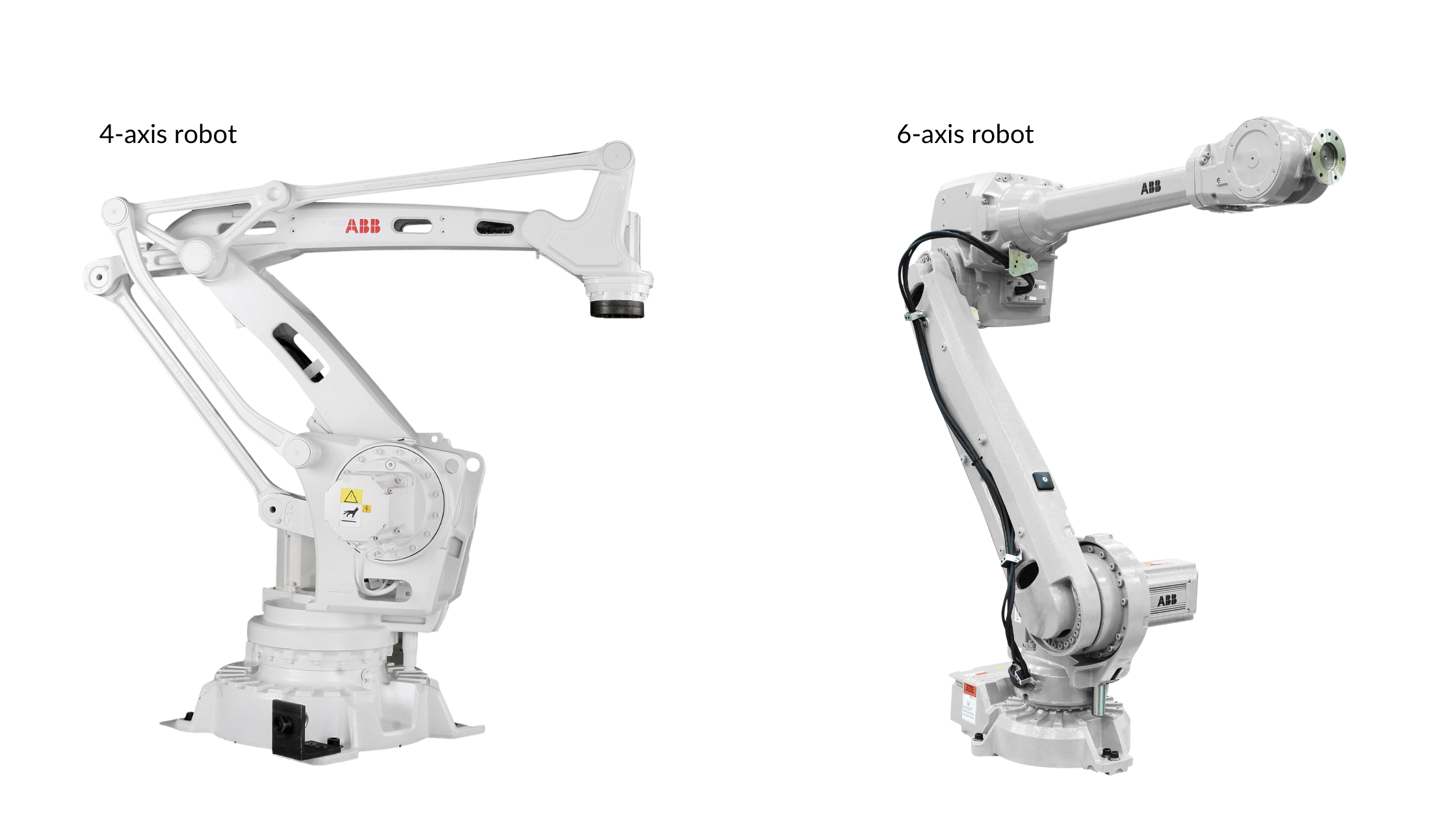

Among the multitude of types of robots available, 6-axis and 4-axis robots stand out as versatile and indispensable tools. But what sets them apart? Let’s discuss the key differences between 6-axis and 4-axis robots, their respective functionalities, and the industries where they excel.
Understanding 6-Axis Robots
6-axis robots, also known as articulated robots, are renowned for their flexibility and dexterity. As the name suggests, these robots feature six axes of movement, mimicking the range of motion of a human arm. The axes include:
1. Base Rotation: Rotation of the robot's arm at its base.
2. Shoulder Rotation: Vertical movement of the robot's arm.
3. Elbow Rotation: Horizontal movement of the lower arm.
4. Wrist Roll: Rotation of the wrist.
5. Wrist Pitch: Vertical movement of the wrist.
6. Wrist Yaw: Horizontal movement of the wrist.
This multidirectional mobility enables 6-axis robots to reach into confined spaces, maneuver around obstacles, and perform complex tasks with precision. Aerospace, automotive, manufacturing, and machining industries extensively utilize 6-axis robots for tasks such as welding, painting, assembly, and intricate machining operations.
Understanding 4-Axis Robots
4-axis robots, also referred to as SCARA (Selective Compliance Assembly Robot Arm) robots, are characterized by their simpler design and specific range of motion. These robots feature four axes of movement, typically comprising:
1. Horizontal Base Rotation: Rotation of the arm at its base.
2. Vertical Arm Extension: Vertical movement of the arm.
3. Elbow Rotation: Horizontal movement of the arm.
4. Wrist Rotation: Rotation of the wrist.
While 4-axis robots lack the full freedom of movement offered by their 6-axis counterparts, they excel in applications that require precise horizontal movement and high-speed operation. Common applications include pick-and-place tasks, packaging, assembly line operations, and material handling in industries like electronics, food and beverage, and pharmaceuticals.
Key Differences and Considerations:
1. Flexibility vs. Speed: 6-axis robots offer unparalleled flexibility and maneuverability, making them ideal for tasks that require intricate movements and adaptability to complex environments. In contrast, 4-axis robots prioritize speed and efficiency, making them suitable for repetitive tasks with predictable motion paths.
2. Payload Capacity: 6-axis robots typically have a lower payload capacity compared to 4-axis robots due to their articulated design. However, advancements in technology have narrowed this gap, with some 6-axis robots capable of handling heavy payloads.
3. Cost: Generally, 4-axis robots are more cost-effective than their 6-axis counterparts, making them a preferred choice for budget-conscious applications where a full range of motion is not necessary.
By understanding the distinctions between 6-axis and 4-axis robotics, businesses can make informed decisions to optimize their operations and achieve greater efficiency in their respective industries.
